Eglass

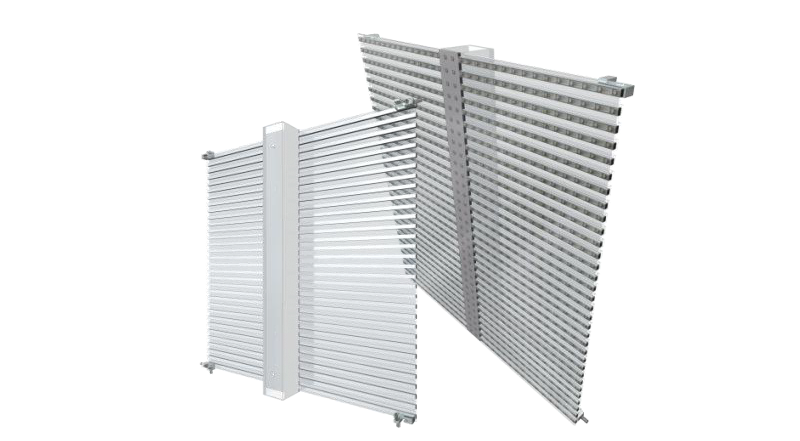

Your Brilliant Glass LED Display Unit

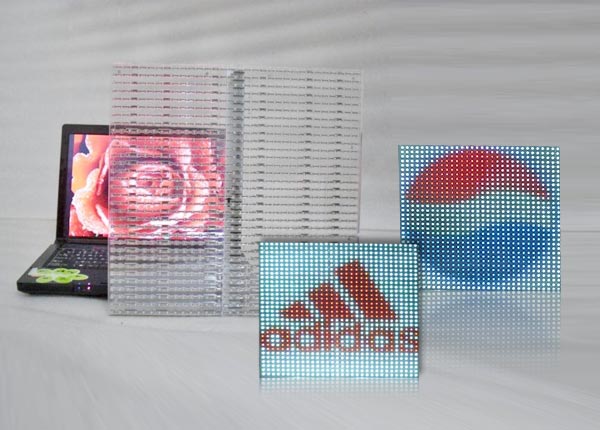

Module Display Effect

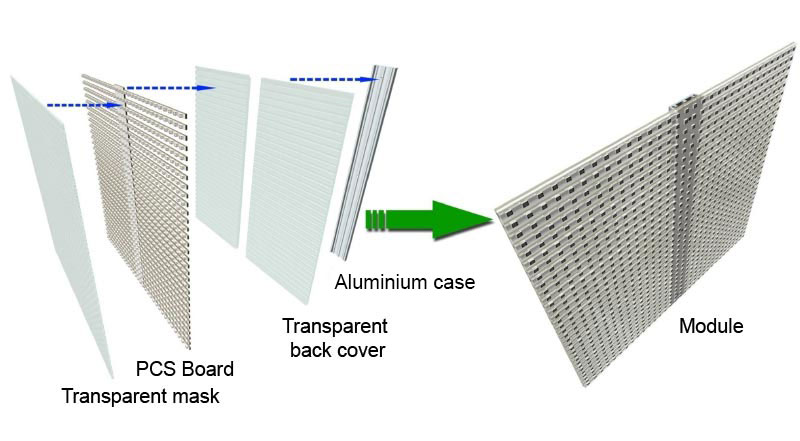

Single Module Schematic Diagram

Case Module Consists of 4 Major Components:

• Mask
• Lamp + PCS Board
• Back Cover
• Aluminium Case

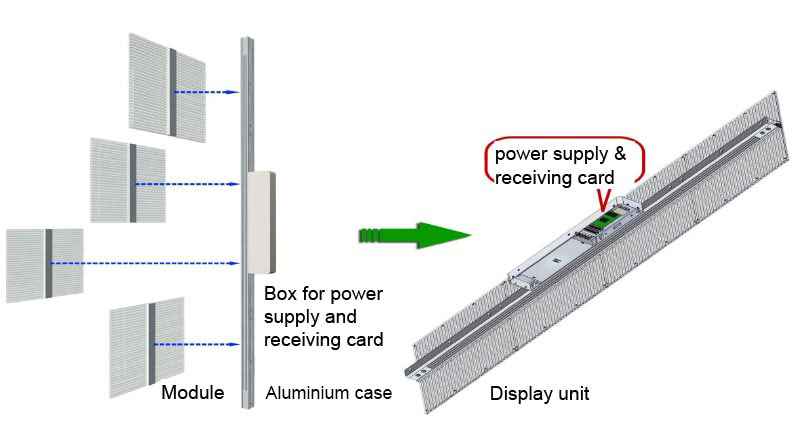

Single Display Unit Schematic Diagram

Consists of 3 parts:

• Modules
• Power Supply and Receiving Card Box
• Aluminium Case

Screen Connection Diagram

Fixed Installation

Upper and lower unit connected by a metal plate, fixed at glass border

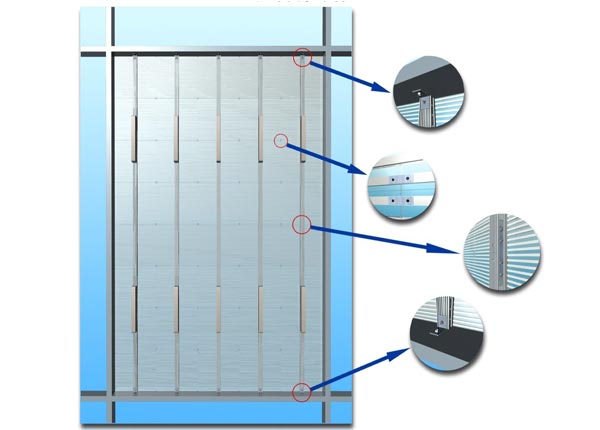

Screen Installation Schematic Diagram

Advantages:

• Quick installation
• Reduce the installation cost where it can be installed directly to the steel

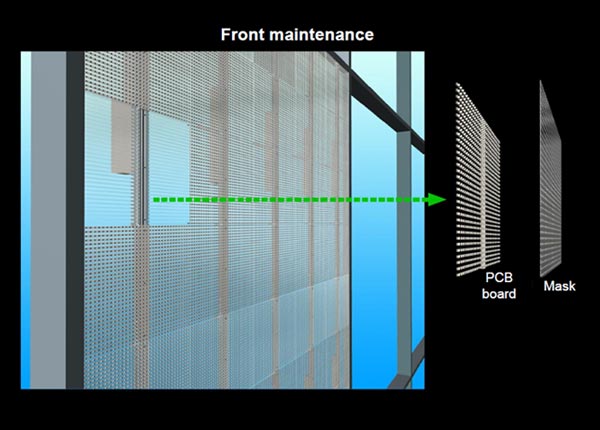

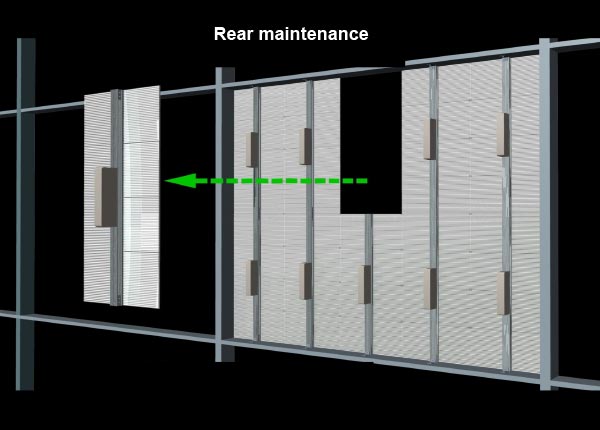

Screen Maintenance Schematic Diagram

Single display unit can be freely disassembled

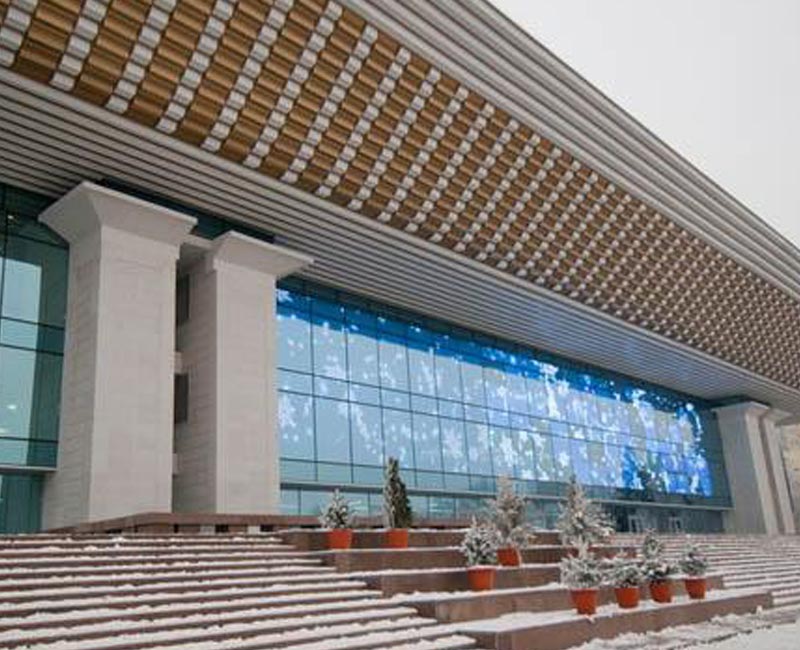

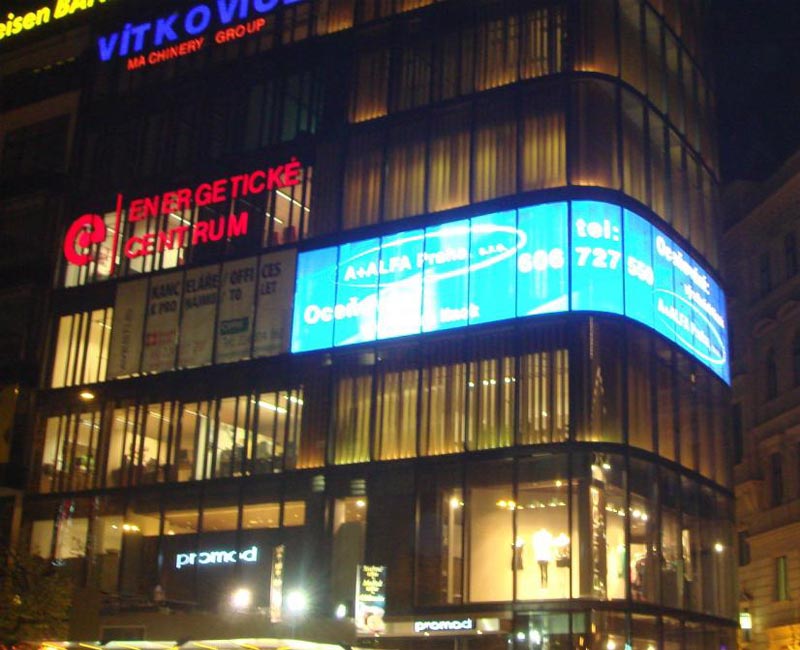

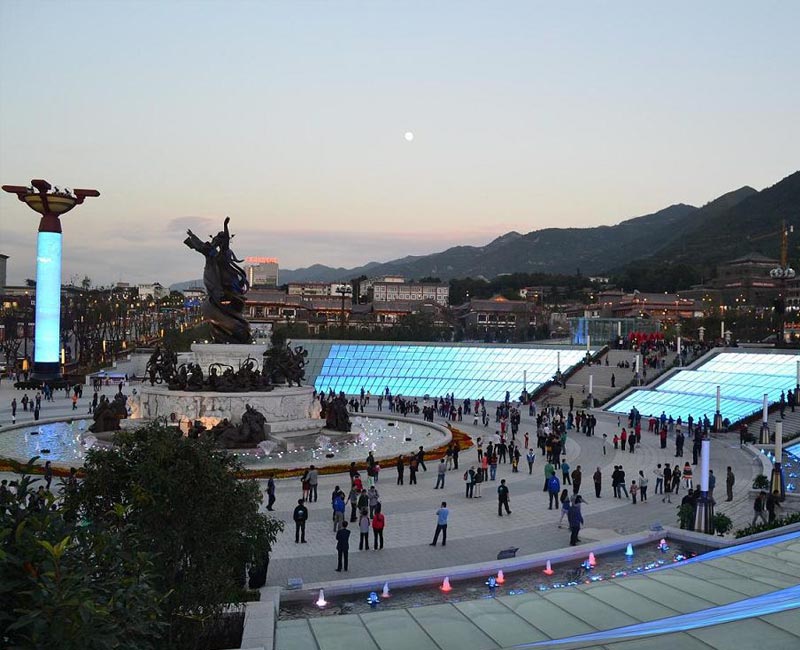

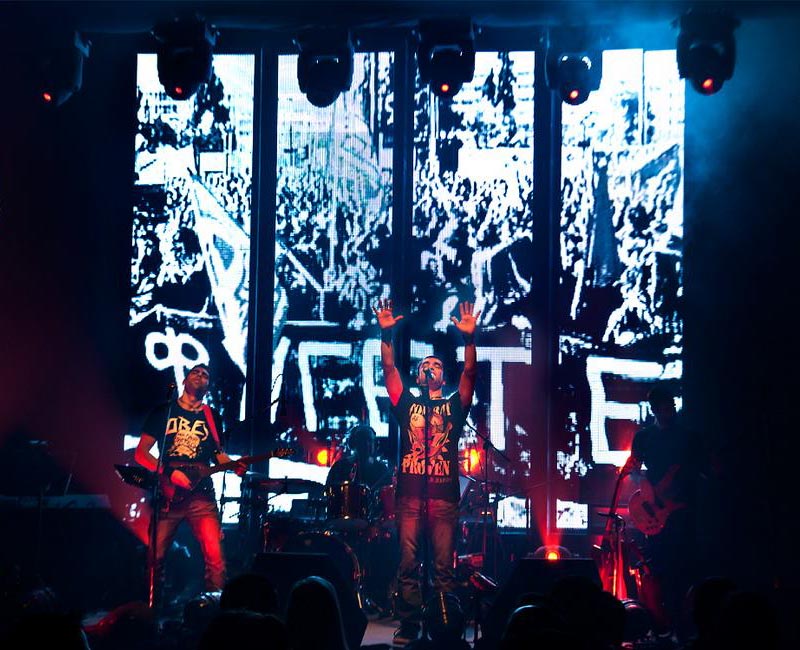

Applications
