Eframe-S

Intelligent Front Access 16:9 LED Display Unit

Intelligent Maintenance

• Via our system access to "Maintenance Mode", then you can easy to change LED Module thru our Tools
• ALL Module, System, Power Supply and cable – Front Access

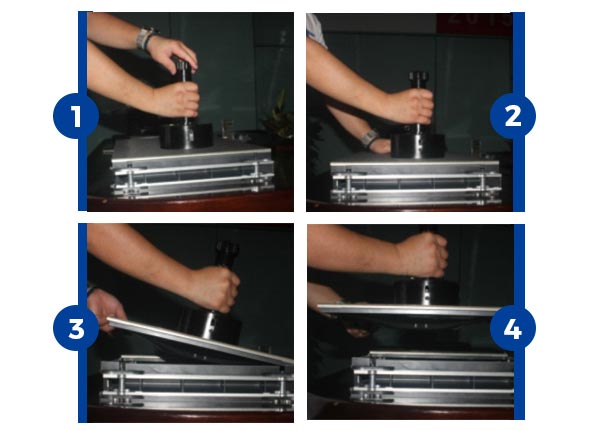

Backup Maintenance

If no power input , you can also thru our Special tools for change LED Module

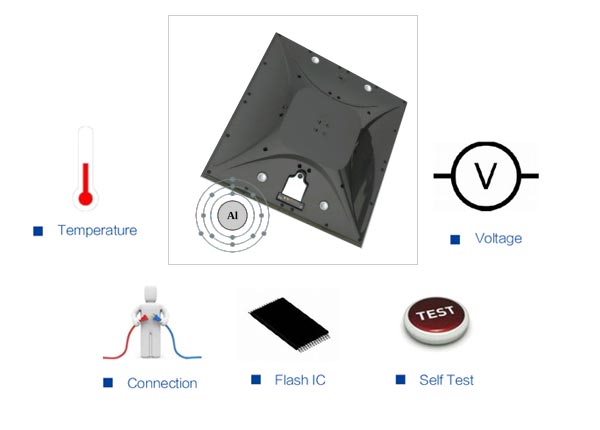

Each LED Module Function

High Protection

• Die Casting Aluminum LED Module and Cabinet with CNC Process , Tolerance <0.1mm
• Protection IP50

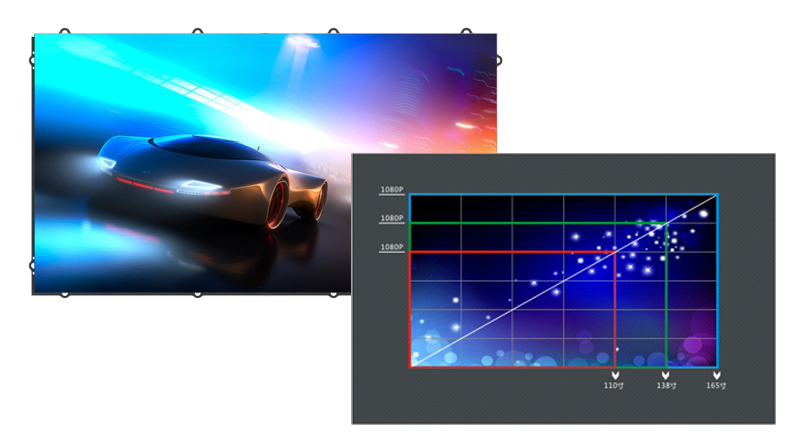

16:9 Ratio

• 16:9 Ratio, Pixel to Pixel for 720p, 1080p, 2160p, 3840p Standard HD Resolution

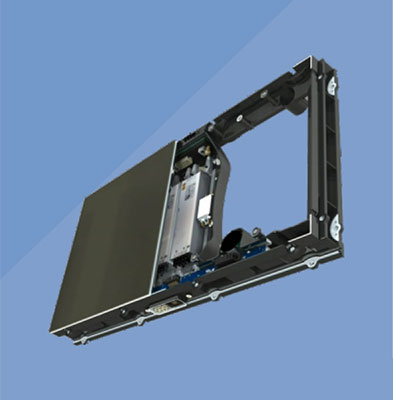

Fully Front Access

Module, System, Power Supply, Cable – ALL Front Access, No need back space

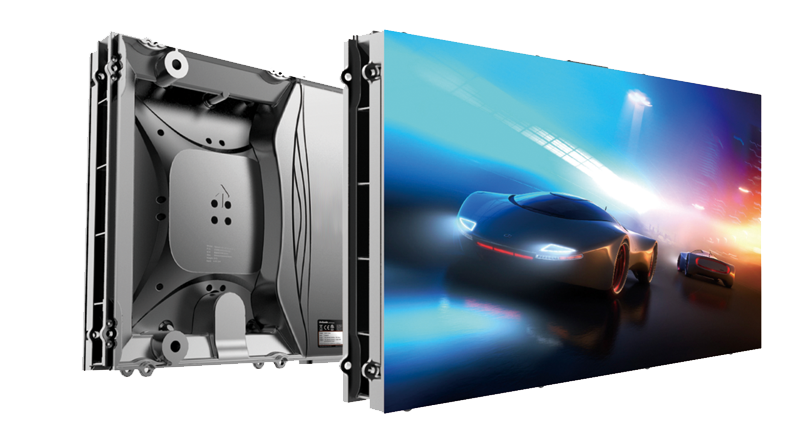

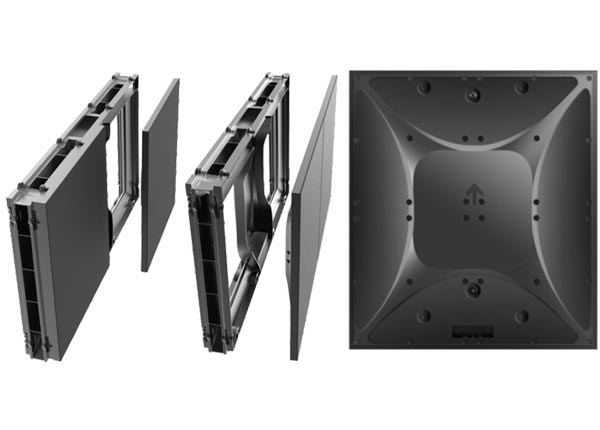

Safe Installation

Cabinet and Module - Separate package
Install Cabinet first and then Module, High Protection

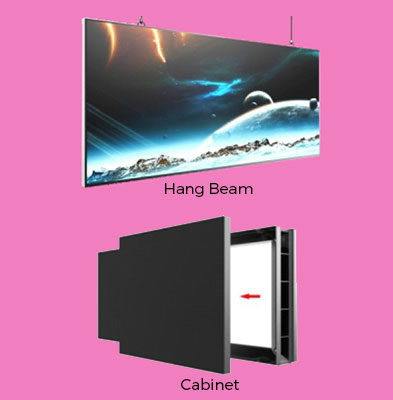

Hanging/WallMount

Hang Beam , Max. 20pcs Cabinet Height - Optional

Cabinet just 70mm, 100mm thickness with Structure

Good Dissipation

• No Fan / Noise Design, Energy Saving
• PFC Power Supply, 95% Efficiency, Save Power

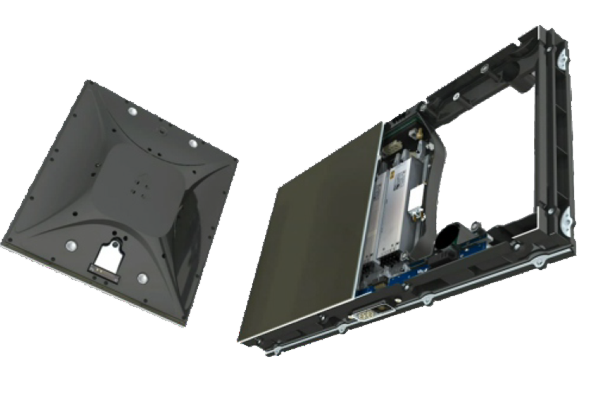

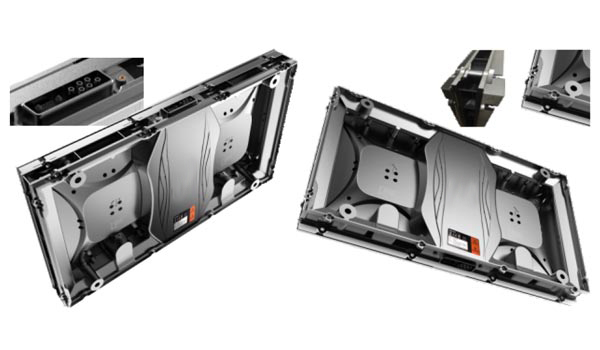

• Separate Cabinet and Module Design , Power Supply stick on cabinet for good heat dissipation, extend Module life

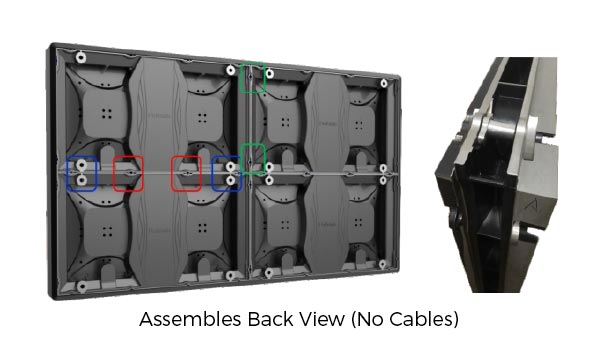

Auto Connection

• During cabinet Installation, AC power and Signal Automatically installed

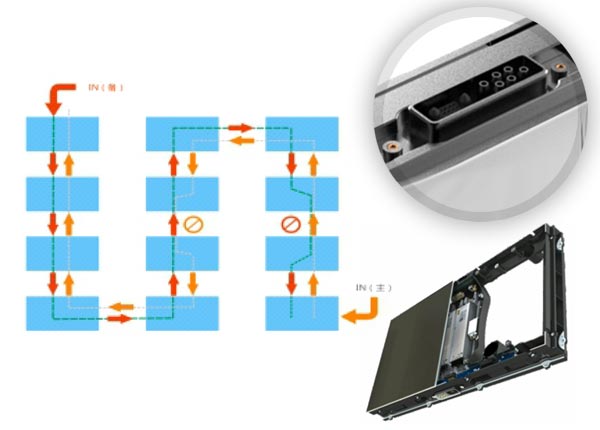

Dual Backup System

• Backup System :
Power Supply, Signal Cable (Sending System), Control System, Socket available

Automatic Calibration

• ALL Calibration Data saved at Each LED Module
• Once change a new LED Module, the system will update Calibration data automatically

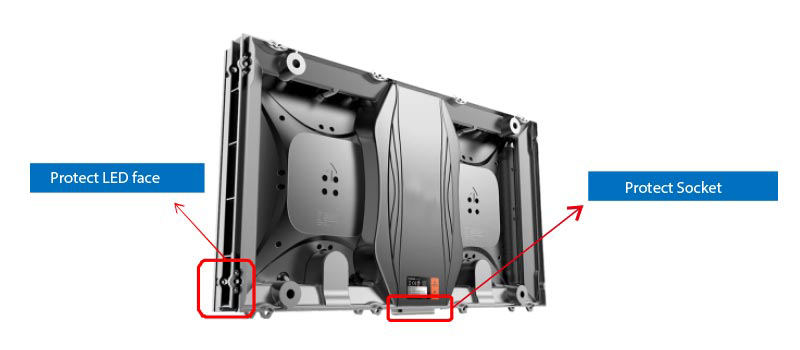

Protection Design

• Cabinet with Protection design for Prevent hit a LED and socket during Installation

6 Axis Cabinet Assemble System

• Up / Down, Left / Right, Front / Rear , for good Alignment

Patent

• Separate Cabinet and Module Design
– Module output No change if Cabinet deformed
• S Front Access Automatically
– Non-Touching system , High LED Protection

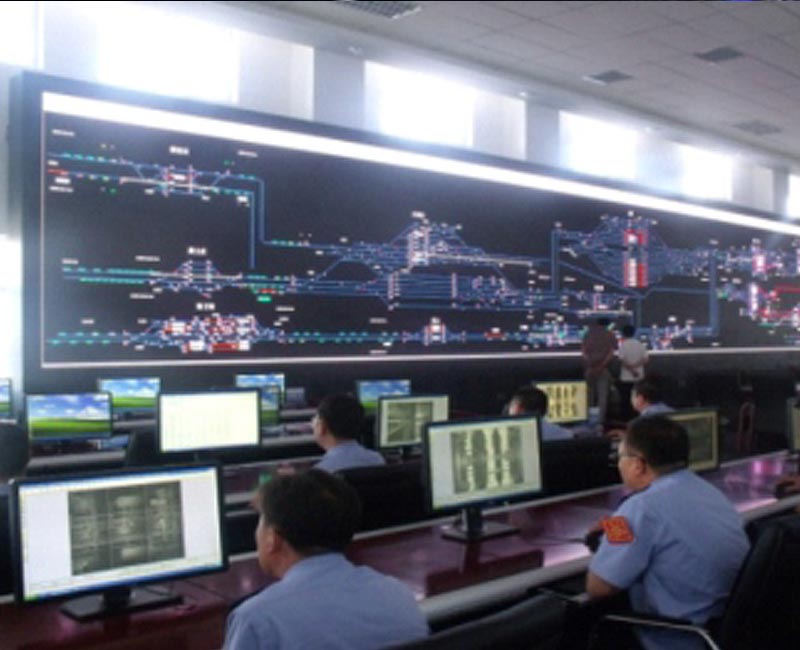

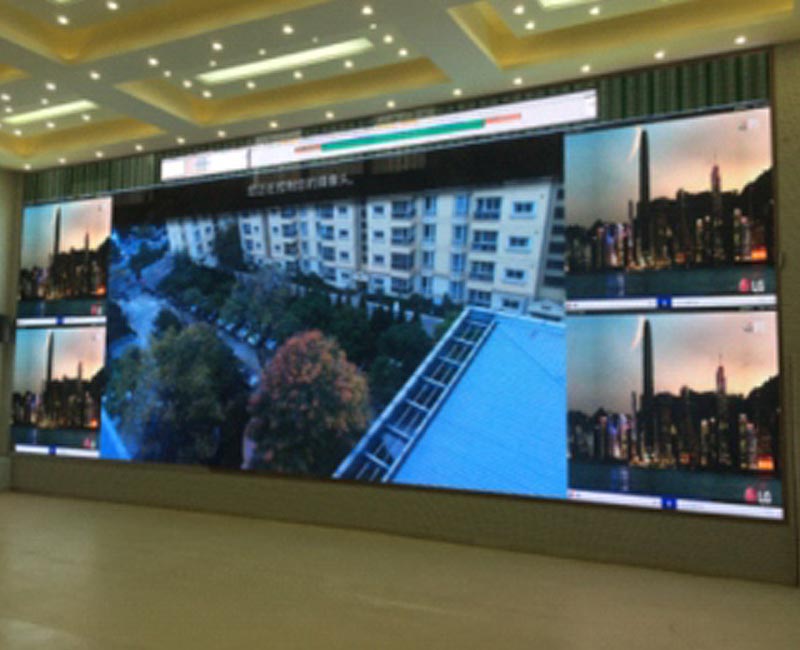

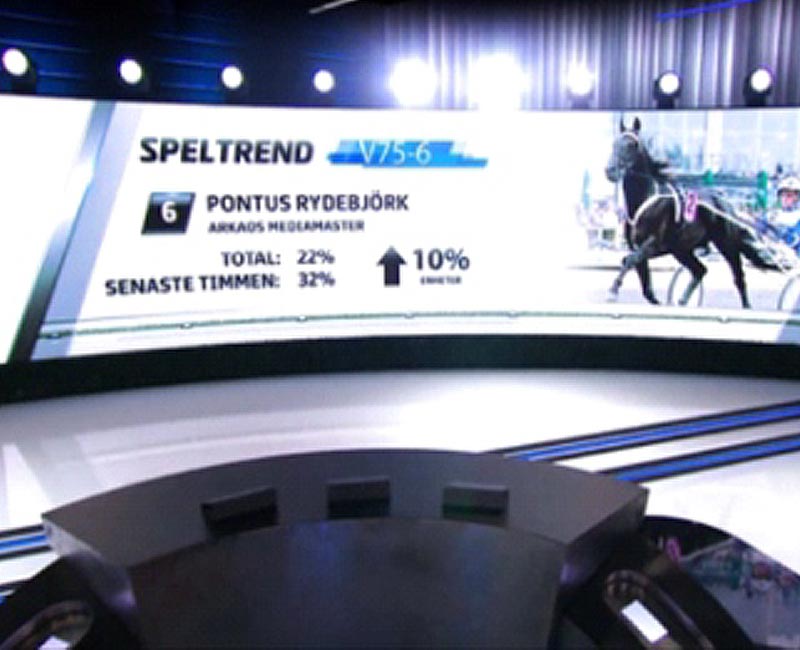

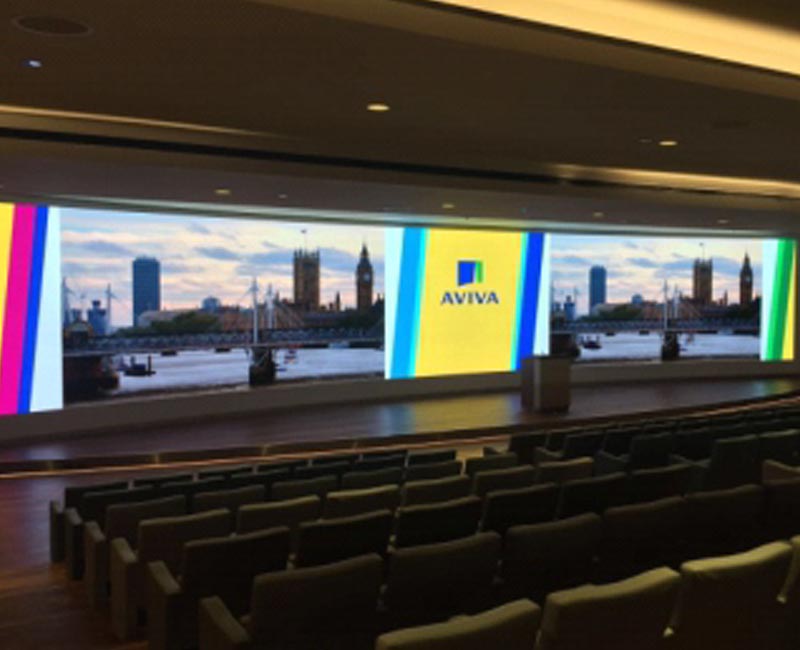

Applications

Parameter

Item	Eframe-s0.9	Eframe-s1.2	Eframe-s1.4	Eframe-s1.5	Eframe-s1.9
Cabinet Resolution (pixels)	640x360	480x270	416x234	384x216	320x180
Cabinet Size(mm)	W609.92×H343.08×D71 (W24.01inH13.51inD2.79in)	W609.92×H343.08×D71 (W24.01inH13.51inD2.79in)	W609.92×H343.08×D71 (W24.01inH13.51inD2.79in)	W609.92×H343.08×D71 (W24.01inH13.51inD2.79in)	W609.92×H343.08×D71 (W24.01inH13.51inD2.79in)
Material	Die-cast	Die-cast	Die-cast	Die-cast	Die-cast
Brightness (cd/sqm)	600	600	600	600	600
Weight (kg/cabinet)	7.5	7.5	7.5	7.5	7.5
